BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

Brand Name : Zaozhuang NO.1

Model Number : BC6063

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 6000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Max.planing length(mm） : 630

The maximum distance from the bottom of the ram to the work surface : 385

Max.lateral travel distance of worktable : 660

Max.vertical table travel distance : 360

Working surface size(mm) : 630*400

Tool travel(mm) : 120

T-slot(mm) : 18

Main power(kw) : 3

NW/GW（kg） : 3500

Dimensions（mm） : 2000*1300*1550

Contact Now

Factory Direct BC6063 Metal Fully Automatic Planer Hydraulic Shaper Machine Price

The Shaper is a planer that performs linear reciprocating motion. The ram carries the planer. It is named because the tool holder at the front of the ram looks like a bull's head. The ram carries the planer in horizontal linear reciprocating motion. The tool holder can rotate an angle in the vertical plane and can be fed manually. The worktable carries the workpiece in intermittent horizontal or vertical feeding motion. It is often used to process planes, grooves and dovetail surfaces.

Product specification:

Name
Unit
BC6063
Max.planing length
Mm
630
The maximum distance from the bottom of the ram to the work surface
Mm
385
Max.lateral travel distance of worktable
Mm
660
Max.vertical table travel distance
Mm
360
Working surface size
Mm
630*400
Tool travel
Mm
120
The number of reciprocating rams per minute
14-80
Tool holder rotation angle
±60°
Planer handle the largest size
Mm
20*30
Table feed
Mm
0.4-5 (level)
0.08-1.00 (vertical)
T-slot
Mm
18
Main power
Kw
3
Dimensions
Mm
2000*1300*1550
NW/GW
KG
3500

Details Display:

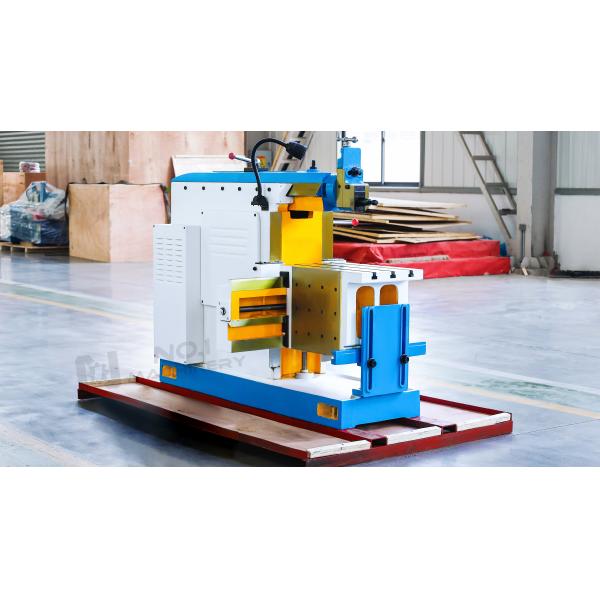

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

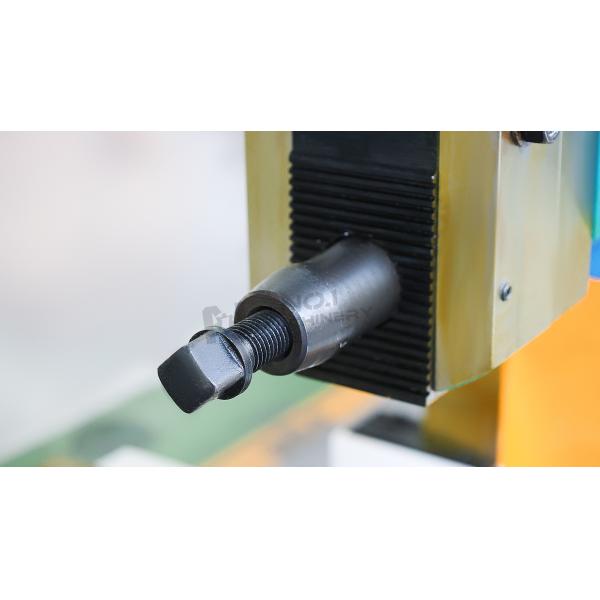

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

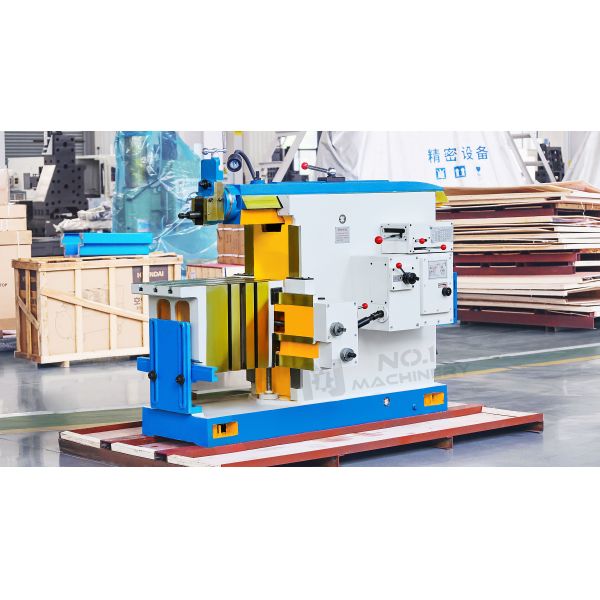

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine
